Copper Foil Tapes

Product No.：GXHMCFT
Online Inquiry

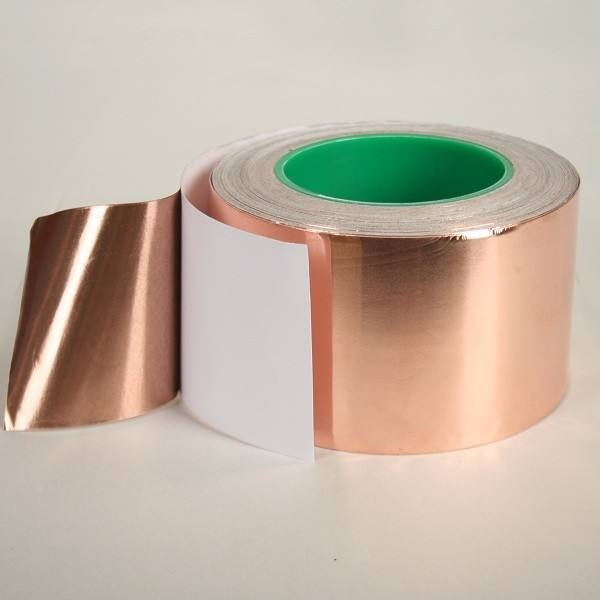

Copper Foil Tape is made of pure copper foil (99.98%) coated with acrylic adhesive and release paper. It can be divided into: double side conductive copper foil tape, single conductive copper foil tape. They have high temperature resistance, strong adhesion, good conductivity, excellent shielding performance and easy die-cutting.

Copper foil tape main features

♦ Heat preservation, heat insulation ♦ Waterproof ♦ EMI shielding

♦ Strong adhesion and easily peeled off ♦ Ideal for indoor & outdoor application and durable

♦ UV resistance, flame retardant ♦ Moisture resistance, chemical and corrosion resistance

Copper foil tape applications:

1) Antistatic floor (ESD floor)                         2) Shielding in housings and Faraday cages
3) Cable shielding (Wrap around the cable)            4) Suitable for precision electronic products.
5) Electrical connection between surfaces (sheets / foils) 6) Mounting transparent foils, windows for EMI/RFI shielding.
7) Temporary shielding during emission and immunity tests. 8) The back of guitar pickguards, Eliminates electrical harm and noise.
9) Replace tracks on electrical & printed circuit boards (can solder).   10) Slug & snail barrier tape.

Product	Copper Thickness (Micron)	Glue thickness (Micron)	Electrical conductivity	Elongation at breat (%)	Heat Resistance(℃)
Single-conductivecopper foil tape	18, 22, 25, 27, 30, 35, 40, 50, 75, 90	32 MicronTo60 Micron	0 Ω	-20 ~ +60	-20 ~ 120
Double-conductivecopper foil tape	18, 22, 25, 27, 30, 35, 40, 50, 75, 90	32 MicronTo60 Micron	0.03 Ω	-20 ~ +60	-20 ~ 120
